Specifikation
Modell | AIN51105W | AIN51105S | AIN5165S | AIN51150S | AIN76105S |
Nominell spänning | 51.2V | 51.2V | 51.2V | 51.2V | 76.8V |
Nominell kapacitet | 105Ah | 105Ah | 65 Ah | 150 Ah | 105Ah |
Rated Energy | 5370Wh | 5370Wh | 3320Wh | 7680Wh | 5370Wh |
Maximum Charge Voltage | 58,4V | 58,4V | 58,4V | 58,4V | 87,6V |
Maximal laddström | 100A | 100A | 60A | 150A | 100A |
Maximal kontinuerlig urladdningsström | 150A | 150A | 130A | 200A | 200A |
Maximum Peak Discharge Current (30 seconds) | 300A | 300A | 250A | 300A | 300A |
Avtappning avstängningsspänning | 43,2V | 43,2V | 43,2V | 43,2V | 43,2V |
Driving Mileage | 65-80km | 65-80km | 40-60km | 90-120km | 100-130km |
Laddningstemperatur | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ |
Utsläppstemperatur | -20 ~+60 ℃ | -20 ~+60 ℃ | -20 ~+60 ℃ | -20 ~+60 ℃ | -20 ~+60 ℃ |
Cycle Life (25℃, 0.5C, 100% DOD) | >6000 | >6000 | >6000 | >6000 | >6000 |
Terminals | M8 Nut | M8 Nut | M8 Nut | M8 Nut | M8 Nut |
Skyddsnivå | IP67 | IP65 | IP65 | IP65 | IP65 |
Dimensions(mm) | 547*334*245 | 457*298*253 | 465*243*228 | 675*325*260 | 674*338*275 |
Vikt | 48.3kg | 49kg | 32 kg | 71kg | 72.8kg |
Communication Protocol | CAN/RS485 | RS485 | RS485 | CAN/RS485 | CAN/RS485 |
Nyckelfunktioner
1, PET is able to bear 850kg, avoid bulging
2, CCS vehicle-grade craft,integrated wires

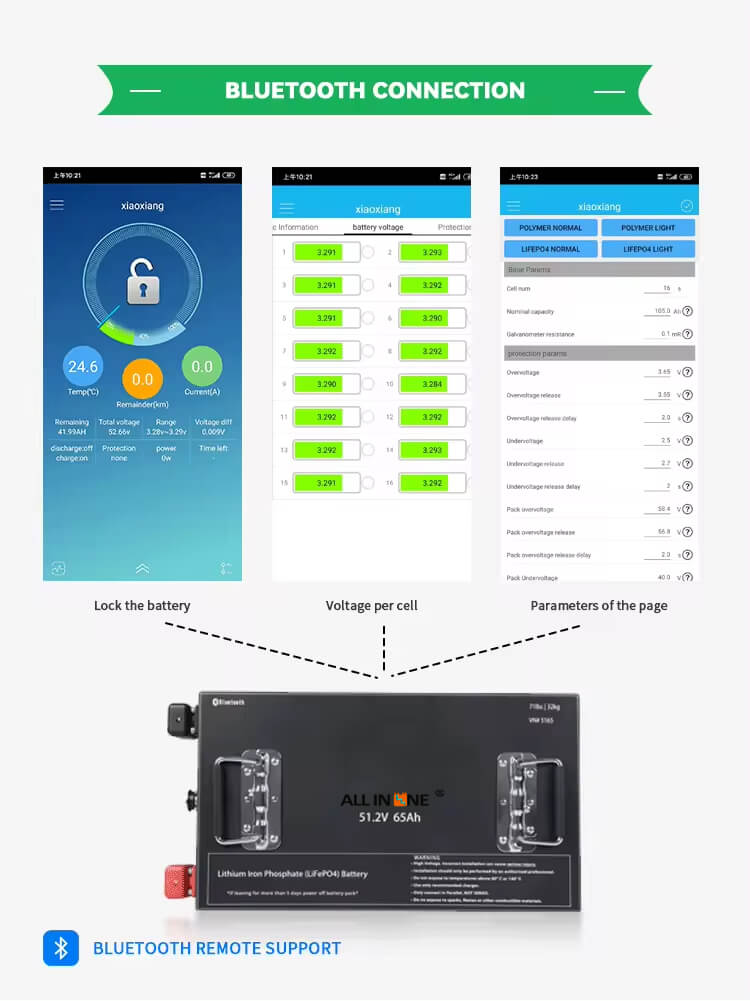

3, Support RS485/CAN/Bluetooth etc
4, 3-4mm metal plates at both side
5, Reserve 1mm width for potential bulging
6, Distributed sampling system to solve sampling impedance problem.
Vi lovar
1.Alla produkter kommer att vara testat 100% före leverans för att säkerställa att produkten inte har några kvalitetsproblem.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.
Ansökan
> Uninterruptible power system > Grid load shifters > Electric Golf Car > Electric vehicles
> Electric motorcycles> Electric forklifts > Electric boats, etc.> Wind-Solar energy system
> Solar street lights > Off-grid energy storage > Household energy storage
> Telecom backup system > Mobile base stations> Emergency backup energy sources
Vår fabrik
Förpackning och frakt
FAQ
Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.
F2: Ger du kundservice?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.
Q3 Vad är ditt företags fördel?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service
F4: accepterar du OEM / ODM?
A4: Yes, it is available.
Q5: What is your lead time for mass production?
A5: Allmänt sett, cirka 25-30 dagar beroende på olika artiklar efter att ha fått handpenning och bekräftelse om proverna.
Q6:Are your battery real capacity?
A6: Alla våra battericeller med klass A, 100% ny och verklig kapacitet.
F7: Är du en fabrik eller ett handelsföretag?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
F8: Vilken typ av certifikat har du?
A8: Vi kan tillhandahålla CE, ROHS, FCC, IEC62133, MSDS, UN38.3 om din orderkvantitet är stor.
