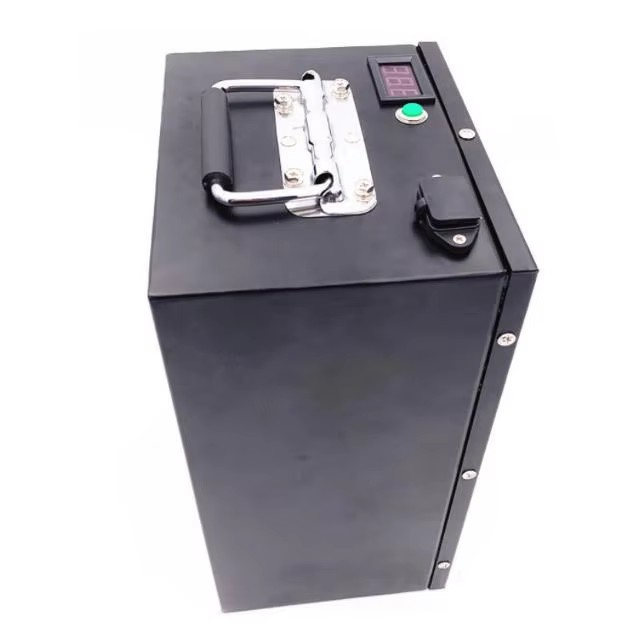

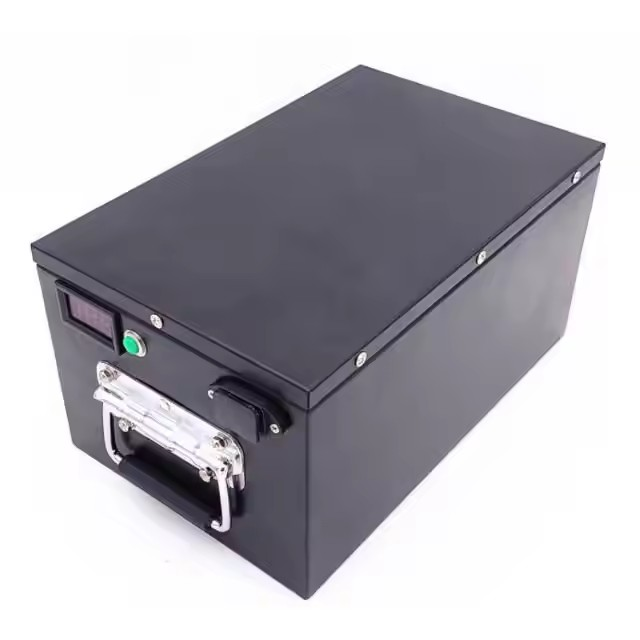

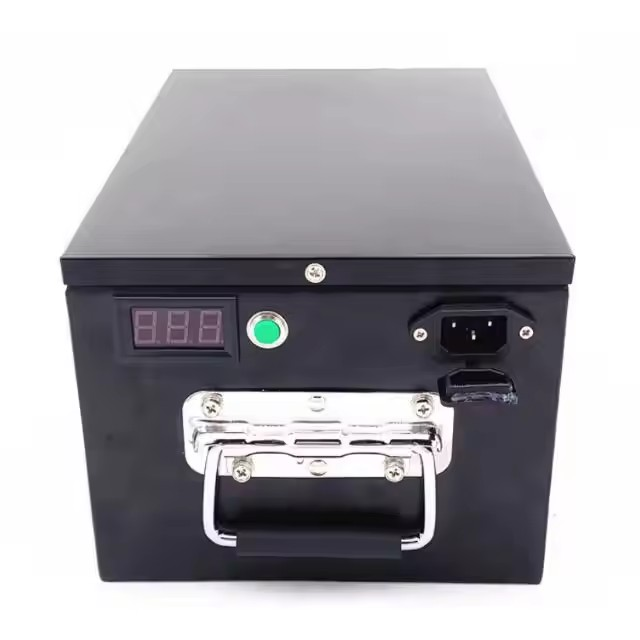

60V 100Ah LiFePO4 Lithium Ion Battery For AGV Smart Robot

2025-01-13 05:29

Specifikation

Artikel	Specifikation	Notera
Nominell spänning:	60V	Any voltage can be customized
Nominal Capacity:	100 Ah	Any capacity can be customized
Discharge Cut-Off:	47,5V
Charge Cut-Off:	69.3V
Charge Current:	30A	Free customization service
Cont. Discharge:	100A	Free customization service
Peak Discharge:	200A	Free customization service
Impedans:	≤200mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Charge Method:	CC / CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
Dimensionera:	Flexible	Any dimension can be customized
Vikt:	120KG

Funktioner

• More than 6000 Cycles
  • Battery modules available for parallel and series for higher voltage and capacity
  • BMS Passive cell balance function
  • IP66, IP67, water proof, dust proof, Temperature monitoring
  • Customization for Size and Discharge and charge rate
  • Free of Maintenance, contains no poisonous material
  • No leakage, no hazardous chemistry
  • Quick delivery
  • Lighter in weight, smaller in size to save space.
  • Powerful to increase robust operation for your marine boat or RV
  • Fast charging and high power discharge rate available
  • No need to add water nor worry about maintenance.
  • We offer 5 years regular warranty and it can be extended up to 10 years.

Inbyggt BMS

Artikel	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Avgift Överströmsskydd	Charge Over current detection current	1~100A
	Charge Over current detection delay time	0.02S~ 6S
Ansvarsfrihet Over current protection	Discharge Over current detection current	1~600A
	Discharge Over current detection delay time	0.02S~ 6S
Kort protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Current consumption	Current consume in normal operation	1.5mA Type
Current consumption	Current consume in sleep operation	2 uA Type

Note BMS is customizable. More advanced functions available, such as Bluetooth, RS485, CAN, Autocratically Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

LIFEPO4	Mått	Vikt	with BMS	RS485/Bluetooth	Cycles	Garanti
60V 10AH	195*165*175mm	9.5kg	Ja	Tillgängliga	6000times	5 år
60V 20AH	330*175*220mm	19 kg	Ja	Tillgängliga	6000times	5 år
60V 30AH	407*175*235mm	25 kg	Ja	Tillgängliga	6000times	5 år
60V 40AH	407*175*235mm	28 kg	Ja	Tillgängliga	6000times	5 år
60V 50AH	525*240*215mm	44kg	Ja	Tillgängliga	6000times	5 år
60V 120AH	420*360*550mm	84kg	Ja	Tillgängliga	6000times	5 år
60V 200AH	1000*600*182mm	156kg	Ja	Tillgängliga	6000times	5 år

Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.

Ansökan

Vår fabrik

ALL IN ONE is a lithium battery Manufacturer for over 15 years, recognized by customers from

Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries!



FAQ

1.Q: Stöder ni en provbeställning?

A: Ja, välkommen att beställa prover, vi har lager i USA och Europa, vissa prover kan skickas snabbt.

2. F: Har produkten ett inbyggt BMS?

A: Ja, intelligent BMS inklusive JBD/PACE/SmarTec inbyggt för att säkerställa att batterierna hanteras undersmart.

3.Q: Can your company accept customized order ?

A: Självklart är anpassning vår styrka.

4. F: Kan batteripaketet vara kompatibelt med växelriktarna på marknaden?

A: Ja, våra paket är kompatibla med fler än 20 växelriktarmärken på marknaden, inklusive Victron, Goodwe, Solis, Growatts, Voltronics, Deye och andra kända märken.

5. F: Hur är garantin?

A: 5 years upto its usage.

6. F: Har du några certifieringar?

A: CE, UN38.3 and MSDS, Pack UL1973 is under processing.

7.Q: Hur är leveranssättet och tiden?

A: 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: Har du en riktig fabrik?

A: Yes, our factory is in Anhui. We welcome you to visit our factory.
