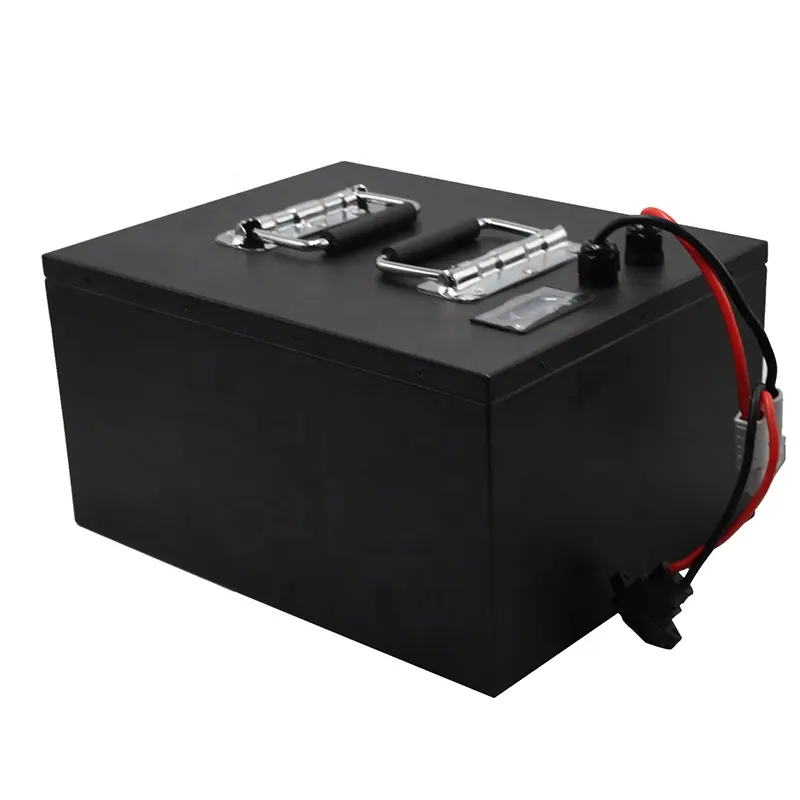

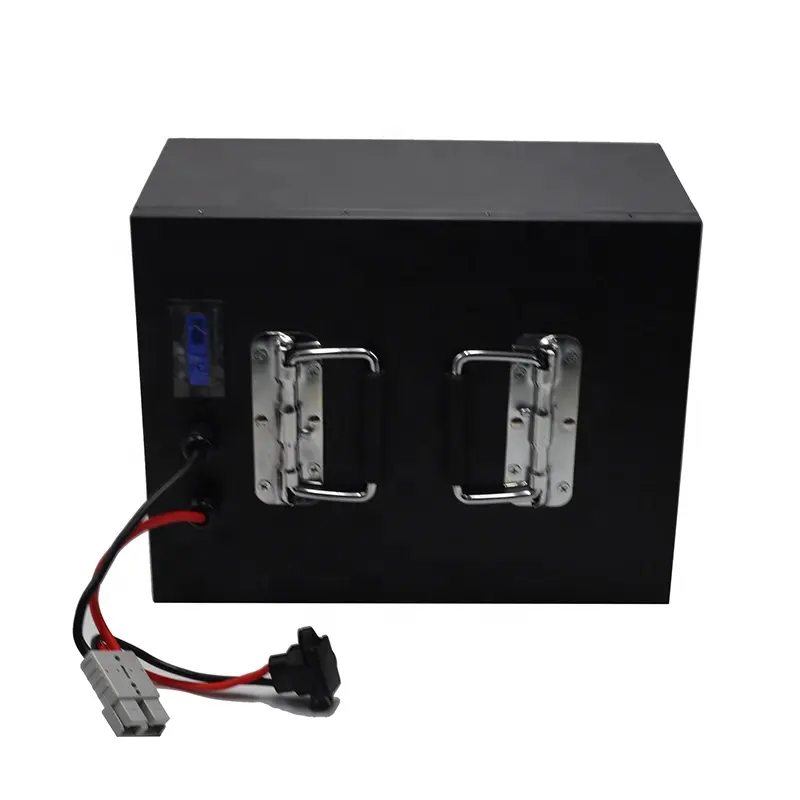

Anpassat LiFePO4 batteripaket 72v 60ah elfordonsbatteri litiumjonpaket för elbilar

2023-06-06 02:13

Specifikation

Varumärke	ALLT I ETT
Modell	AIN7260
Garanti	5 år
Nominell spänning	76,8V
Nominell kapacitet	[email protected]/customize
Energi	4416Wh
Internt motstånd	≤50mΩ
Cykelliv	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Självutladdning	≤3,5% per månad vid 25 ℃
Max. Laddningsspänning	87.6 V
Laddningsläge	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Laddningsström	30A
Max. Laddningsström	60A
Urladdningsström	30A
Max. discharge Continuous Current	60A
Max. Pulsström	120A(<3S）
Urladdning av avstängningsspänning	60V
Laddningstemperatur	0 ℃ till 45 ℃ (32 ℉ till 113 ℉) @ 60 ± 25% relativ luftfuktighet
Utsläppstemperatur	-20 ℃ till 60 ℃ (-4 ℉ till 140 ℉) @ 60 ± 25% relativ luftfuktighet
Förvaringstemperatur	0 ℃ till 45 ℃ (32 ℉ till 113 ℉) @ 60 ± 25% relativ luftfuktighet
Motstånd mot vattendamm	IP55
Cell & Format	LFP  60AH 24S1P/customize
Hölje	Metal Case
Mått (L * B * H * TH)	anpassa
Vikt	50kg
Terminal	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Laddningsmetod	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Certifikat	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Påminnelse

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Ansökan

Vår fabrik

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Förpackning och frakt

Förpackning

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Frakt

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



FAQ

F: Hur ska jag betala? Vilka betalningssätt accepterar du?
A: T/T, PayPal, Western Union.

F: Är provbeställning acceptabel?
S: Ja, för de flesta batterier är provbeställningar för testkvalitet rimliga och acceptabla.

F: Är din batterikvalitet godkänd?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

F: Hur kan du bevisa att dina celler är 100 % original?
S: Vi kan visa dig originalpaketlistan och andra relaterade dokument.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

F: Vad är din garanti?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. För skador orsakade, till exempel batteribulning/svetsning, batteripaket utan skydd BMS orsakat av laddning.
